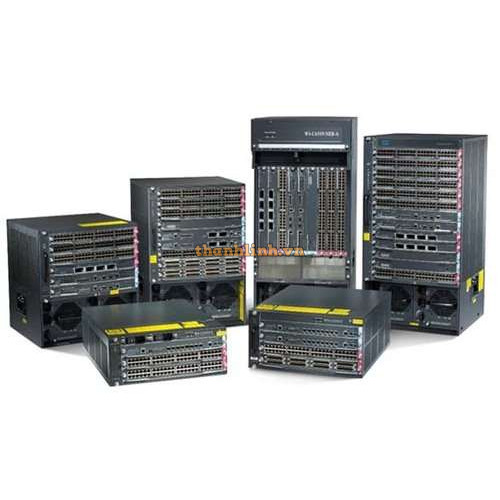

48-port Gigabit PoE+ + 4x1G Uplink Switch CISCO C9200L-48P-4G-E

- Catalyst 9200L 48-port PoE+ 4x1G uplink Switch, Network Essentials.

- Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access.

- Advanced network monitoring using Full Flexible NetFlow.

- Cisco Software-Defined Access (SD-Access)

+ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE);

+ Network assurance and improved resolution time through Cisco DNA Center.

- Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network.

- Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry.

- ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries.

- Cloud monitoring for Catalyst on Meraki dashboard.

Specifications

Performance and scalability

Stacking bandwidth 80Gbps

Total number of MAC addresses 16,000

Total number of IPv4 routes (ARP plus learned routes) 11,000 (8,000 direct routes and 3,000 indirect routes)

IPv4 routing entries 3,000

IPv6 routing entries 1,500

Multicast routing scale 1,000

QoS scale entries 1,000

ACL scale entries 1500

DRAM 2 GB

Flash 4 GB

VLAN IDs 4096

PVST Instances 128

STP Virtual Ports (Port *VLANs) for PVST 13,000

STP Virtual Ports (Port *VALNs) for MST 13,000

Total Switched Virtual Interfaces (SVIs) 512

Jumbo frames 9198 bytes

IP SGT binding scale 10K

Number of IPv4 bindings 10K

Number of SGT/DGT policies 2K

Number of SXP Sessions 200

Bandwidth specifications

Switching capacity 104 Gbps

Switch capacity with Stacking 184 Gbps

Forwarding rate 77.38 Mpps

Forwarding rate with Stacking 137 Mpps

Physical Specifications

Chassis Dimensions 4.4 x 44.5 x 28.8 cm
