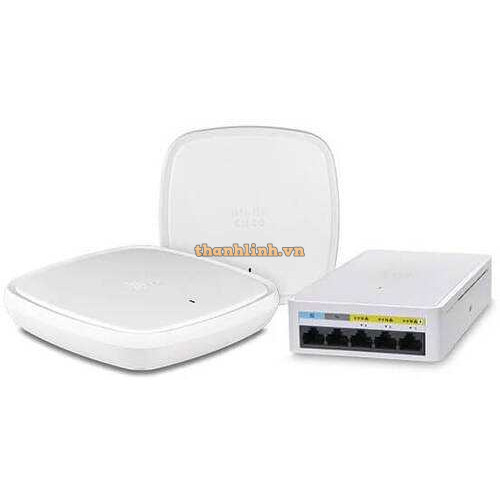

Wireless Access Point CISCO C9105AXI-S

- Cisco Catalyst 9105AX Access Point: Indoor environments, with internal antennas.

- Integrated antenna:

+ 2.4GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth;

+ 5GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth.

- Interfaces: 1x 10/100/1000 Base-T (Ethernet) Uplink Interface, Management console port (RJ-45).

- Dimensions (W x L x H): 150 x 150 x 30 mm.

Specifications

General

Software Cisco Unified Wireless Network Software Release 8.10.MR3 or later

Cisco IOS XE Software Release 17.3.1, or later

Supported wireless LAN controllers - Cisco Catalyst 9800 Series Wireless Controllers

- Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller

802.11n version 2.0 (and related) capabilities - 2x2 MIMO with two spatial streams

- Maximal Ratio Combining (MRC)

- 802.11n and 802.11a/g

- 20- and 40-MHz channels

- PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)

- Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)

- 802.11 Dynamic Frequency Selection (DFS)

- Cyclic Shift Diversity (CSD) support

802.11ac - 2x2 downlink MU-MIMO with two spatial streams

- MRC

- 802.11ac beamforming

- 20-, 40-, 80- MHz channels

- PHY data rates up to 866.7 Mbps (80 MHz with 5GHz)

- Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

- 802.11 DFS

- CSD support

- WPA3 support

802.11ax - 2x2 uplink/downlink MU-MIMO with two spatial streams

- Uplink/downlink OFDMA

- TWT

- BSS coloring

- MRC

- 802.11ax beamforming

- 20-, 40-, 80- channels

- PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz)

- Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

- 802.11 DFS

- CSD support

- WPA3 support
