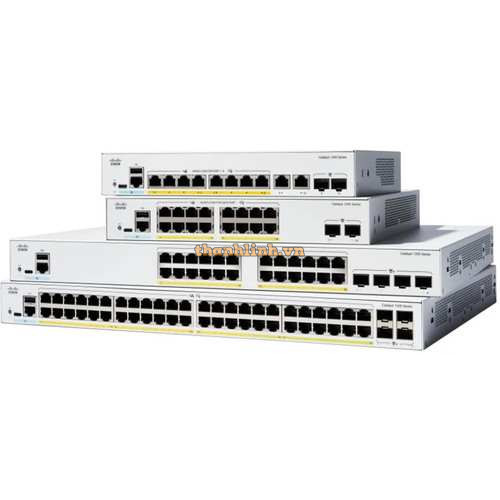

C1200-8P-E-2G

Specifications

Port 8x 10/100/1000 PoE+ ports with 67W power budget

2x Gigabit copper/SFP combo ports

Power dedicated to PoE 67W

Number of ports that support PoE 8

Console port Cisco Standard RJ-45 console and USB Type C port

USB port USB Type C port on the front panel of the switch for easy file and image management as well as console port

Performance

Switching capacity in Gigabits per second (Gbps) 20 Gbps

Capacity in Millions of Packets Per Second (mpps) (64-byte packets) 14.88 Mpps

Hardware

CPU ARM dual-core at 1.4 GHz

DRAM 1 GB DDR4

Flash 512 MB

Packet buffer 1.5 MB

Buttons Reset button

Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T

LEDs System, Link/Act, PoE, Speed

Feature

Spanning Tree Protocol Standard 802.1d spanning tree support

Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default

Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported

Per-VLAN Spanning Tree Plus (PVST+); 126 instances are supported

Rapid PVST+ (RPVST+); 126 instances are supported

Port grouping/link aggregation Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

● Up to 4 groups

● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad Link Aggregation Group (LAG)

VLAN Support for up to 255 active VLANs simultaneously

Port-based and 802.1Q tag-based VLANs

Management VLAN

Guest VLAN

Auto Surveillance VLAN (ASV)

Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices

Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping Limits bandwidth-intensive multicast traffic to only the requesters; supports 255 multicast groups (source-specific multicasting is also supported)

IPv4 routing Wire-speed routing of IPv4 packets

Up to 32 static routes and up to 16 IP interfaces

IPv6 routing Wire-speed routing of IPv6 packets

Layer 3 interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface

Classless Interdomain Routing (CIDR) Support for CIDR

Dynamic Host Configuration Protocol (DHCP) relay at Layer 3 Relay of DHCP traffic across IP domains

Secure Sockets Layer (SSL) Encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch

SSH Protocol SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported.
