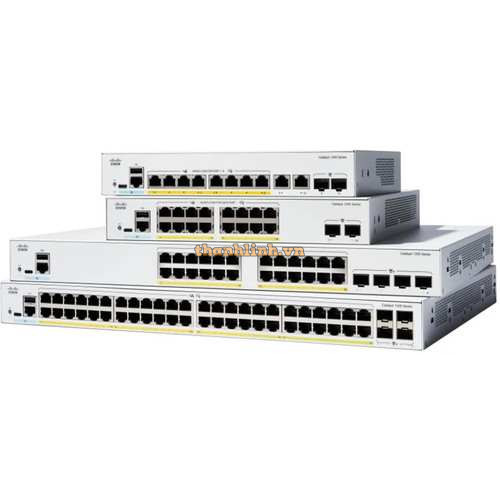

48-Port GE + 4-Port 10G SFP+ Switch CISCO C1200-48T-4X

- Support 48 x 10/100/1000 ports, 4 x 10 Gigabit SFP+, Rack-mountable.

- Console port: Cisco Standard RJ-45 console and USB Type C port.

- Support for up to 255 active VLANs simultaneously

- Support Port-based and 802.1Q tag-based VLANs, Management VLAN, Guest VLAN and Auto Surveillance VLAN (ASV).

- Layer 3 interface: Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface.

- Switching capacity: 176Gbps.

- MAC table: 8000 addresses.

- Flash: 512MB.

- CPU: Dual-core ARM at 1.4GHz.

- DRAM: 1GB DDR4.

- Packet buffer: 3MB.

- Dimensions (W x D x H): 445 x 288 x 44 mm.

- Weight: 3.95kg.

Specifications

Performance

Switching capacity and forwarding rate Capacity in millions of packets per second (mpps) (64-byte packets): 130.94

Switching capacity in gigabits per second (Gbps): 176.0

Layer 2 switching

Spanning Tree Protocol (STP) Standard 802.1d spanning tree support

Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default

Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported

Per-VLAN Spanning Tree Plus (PVST+); 126 instances are supported

Rapid PVST+ (RPVST+); 126 instances are supported

Port grouping/link aggregation Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

- Up to 4 groups

- Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad Link Aggregation Group (LAG)

VLAN Support for up to 255 active VLANs simultaneously

Port-based and 802.1Q tag-based VLANs

Management VLAN

Guest VLAN

Auto Surveillance VLAN (ASV)

Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
