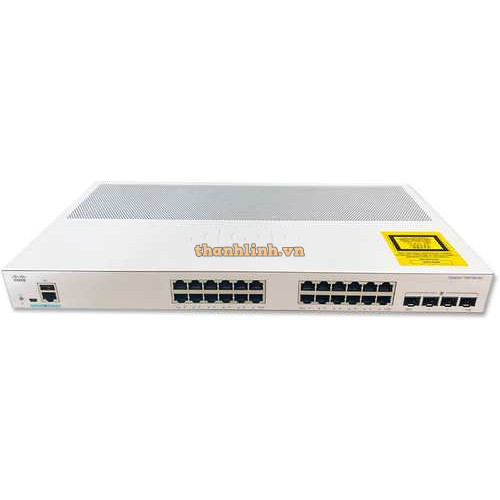

24-port 10/100/1000 Ethernet + 4-port 1G SFP Uplink Switch Cisco C1000-24T-4G-L

- Support 24 x 10/100/1000 Ethernet ports and 4 x 1G SFP uplinks.

- CPU: ARM v7 800 MHz.

- DRAM: 512 MB.

- Flash memory: 256 MB.

- Dimensions (WxDxH): 17.48 x 9.45 x 1.73 inch.

Đặc tính kỹ thuật

Model C1000-24T-4G-L

General

Gigabit Ethernet ports 24 10/100/1000 RJ45 Data

Uplink interfaces 4 SFP

Fanless Y

Dimensions (WxDxH) 17.48 x 9.45 x 1.73 inch

Weight 2.63 kg

Console ports

RJ-45 Ethernet 1

USB mini-B 1

USB-A port for storage and Bluetooth console 1

Memory and processor

CPU ARM v7 800 MHz

DRAM 512 MB

Flash memory 256 MB

Performance

Forwarding bandwidth 28 Gbps

Switching bandwidth 56 Gbps

Forwarding rate (64‑byte L3 packets) 41.67 Mpps

MAC addresses 16000

IPv4 unicast direct routes 542

IPv4 unicast indirect routes 256

IPv6 unicast direct routes 414

IPv6 unicast indirect routes 128

IPv4 multicast routes and IGMP groups 1024

IPv6 multicast groups 1024

IPv4/MAC security ACEs 600

IPv6 security ACEs 600

Maximum active VLANs 256

VLAN IDs available 4094

Maximum STP instances 64

Maximum SPAN sessions 4

MTU-L3 packet 9198 bytes

Jumbo Ethernet frame 10,240 bytes

Dying Gasp Yes

MTBF in hours (data) 2026793

Safety and compliance

Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1

GB 4943.1-2011
