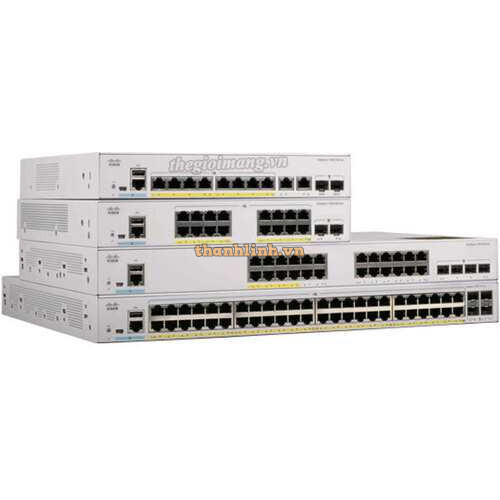

24-port Gigabit Ethernet + 4-port 10G SFP Uplinks PoE Switch Cisco C1000-24FP-4X-L

- 24 x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4 x 10G SFP+ uplinks.

- CLI and/or intuitive web UI manageability options.

- Network monitoring through sampled flow (sFlow).

- Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard.

- Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console acces.

- Reliability with a higher Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty support (E-LLW).

Specifications

Model C1000-24FP-4X-L

General

Gigabit Ethernet / FE ports 24 10/100/1000 RJ45 PoE+

Uplink interfaces 4 SFP+

PoE+power budget 370W

Fanless Y

Dimensions (WxDxH) 17.48 x 13.59 x 1.73 inch

Weight 4.6kg

RJ-45 Ethernet 1

USB mini-B 1

USB-A port for storage and Bluetooth console 1

Memory and processor

CPU ARM v7 800 MHz

DRAM 512 MB

Flash memory 256 MB

Performance

Forwarding bandwidth 64 Gbps

Switching bandwidth 128 Gbps

Forwarding rate (64‑byte L3 packets) 95.23 Mpps

MAC addresses 16000

IPv4 unicast direct routes 542

IPv4 unicast indirect routes 256

IPv6 unicast direct routes 414

IPv6 unicast indirect routes 128

IPv4 multicast routes and IGMP groups 1024

IPv6 multicast groups 1024

IPv4/MAC security ACEs 600

IPv6 security ACEs 600

Maximum active VLANs 256

VLAN IDs available 4094

Maximum STP instances 64

Maximum SPAN sessions 4

MTU-L3 packet 9198 bytes

Jumbo Ethernet frame 10,240 bytes

Dying Gasp Yes

MTBF in hours 698,220

Environmental

Up to 5,000ft (1500 m) -5 to 45 deg C
