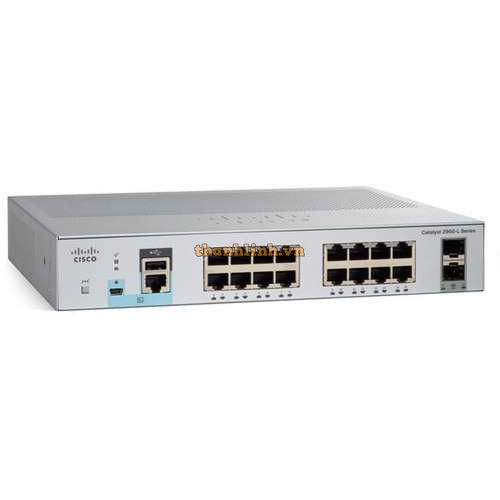

16-port 10/100/1000 Ethernet + 2-port 1G SFP Uplink Switch Cisco C1000-16P-2G-L

- Cisco C1000-16P-2G-L is one of the Cisco Catalyst 1000 Series Switches. Cisco Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices.

- Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

- Support 16 x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2 x 1G SFP uplinks.

- CPU: ARM v7 800MHz.

- DRAM: 512MB.

- Flash memory: 256MB.

- Dimensions (WxDxH): 10.56 x 11.69 x 1.73 inch.

Đặc tính kỹ thuật

Model C1000-16P-2G-L

General

Gigabit Ethernet ports 16 10/100/1000 RJ45 PoE+

Uplink interfaces 2 SFP

PoE+power budget 120W

Fanless Y

Dimensions (WxDxH) 10.56 x 11.69 x 1.73 inch

Weight 2.38 kg

Console ports

RJ-45 Ethernet 1

USB mini-B 1

USB-A port for storage and Bluetooth console 1

Memory and processor

CPU ARM v7 800MHz

DRAM 512 MB

Flash memory 256 MB

Performance

Forwarding bandwidth 18 Gbps

Switching bandwidth 36 Gbps

Forwarding rate (64‑byte L3 packets) 26.78 Mpps

MAC addresses 16000

IPv4 unicast direct routes 542

IPv4 unicast indirect routes 256

IPv6 unicast direct routes 414

IPv6 unicast indirect routes 128

IPv4 multicast routes and IGMP groups 1024

IPv6 multicast groups 1024

IPv4/MAC security ACEs 600

IPv6 security ACEs 600

Maximum active VLANs 256

VLAN IDs available 4094

Maximum STP instances 64

Maximum SPAN sessions 4
