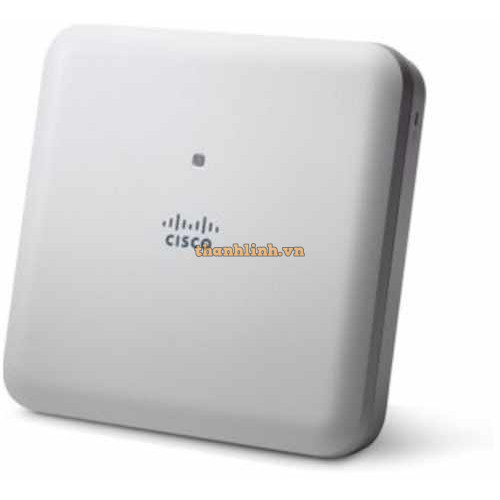

Cisco Aironet AIR-AP1852E-S-K9

- AIR-AP1852E-S-K9 is one of the Cisco Aironet 1830 Series Access Points.

- Cisco Aironet AIR-AP1852E-S-K9 support 802.11ac Wave 2; 4x4:4SS; Ext Ant; E Reg Domain.

- Cisco Aironet AIR-AP1852E-S-K9 is ideal for small and medium-sized networks. This series supports the latest Wi-Fi standard, the 802.11ac Wave 2 standard.

- Cisco Aironet AIR-AP1852E-S-K9 support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

- The model AIR-AP1852E-S-K9 provides E Regulatory Domain and external antennas.

Specifications

Model AIR-AP1852E-S-K9

Software Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.1 MR1 or later for the Cisco Aironet 1850 Series Access Points

Deployment modes Centralized local, Standalone, Sniffer, Cisco FlexConnect, Monitor, OfficeExtend, Mesh

Supported wireless LAN controllers - Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Catalyst 9800 Series Wireless Controllers, Cisco 5760 Series Wireless Controllers, Cisco Catalyst 3650/3850 Series Switches with integrated controller

- Cisco Mobility Express

802.11n version 2.0 (and related) capabilities - 4x4 MIMO with four spatial streams

- Maximal Ratio Combining (MRC)

- 20- and 40-MHz channels

- PHY data rates up to 600 Mbps (40 MHz with 5 GHz)

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 Dynamic Frequency Selection (DFS)

- Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 and 2 capabilities - 4x4 MIMO with four spatial streams, single-user MIMO

- 4x4 MIMO with three spatial streams, multiuser MIMO

- MRC

- 802.11ac beamforming (transmit beamforming)

- 20-, 40-, and 80-MHz channels

- PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz)

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS

- CSD support

- Rogue device detection

Maximum number of nonoverlapping channels - 2.412 to 2.472 GHz; 3 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

Integrated antenna - 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°

- 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

External antenna (sold separately) - Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

- Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Interfaces - 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)

- 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation)

- Management console port (RJ-45)

- USB 2.0 (enabled via future software)

Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H) 210.8 x 210.8 x 50.8 mm

Weight 1.41 kg

Environmental - Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

- Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

- Operating temperature: -4° to 122°F (-20° to 50°C)

- Operating humidity: 10% to 90% (noncondensing)

- Operating altitude test: 40˚C, 9843 ft.

System memory - 1 GB DRAM

- 256 MB flash

Input power requirements Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

- Bảo hành: 12 tháng.
