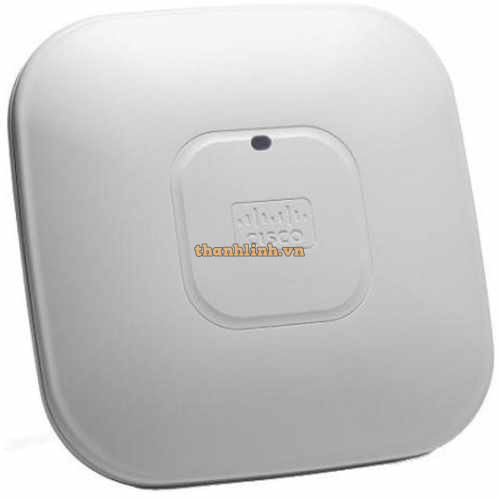

Wireless Access Point CISCO AIR-CAP3602I-E-K9

AIR-CAP3602I-E-K9 is Cisco Aironet 3600 Series Access Point:

- 4 x 4 MIMO technology with three spatial streams.

- IEEE 802.11 a/b/g/n.

- Dual-band, Integrated antennas and A regulatory domain.

- Modular architecture design, MIMO equalization.

- Cisco Clientlink 2.0, Cisco CleanAir technology.

- Designed to address the wireless connectivity needs of factories, large office and other indoor industrial environment, AIR-CAP3602I-E-K9 is the enterprise class, three-spatial-stream access point with Dual-band, controller-based 802.11a/g/n, internal antennas and A regulatory domain. Cisco Aironet 3600 series delivers industry leading performance for secure and reliable wireless connection with up to 450 Mpbs or 1.3 Gbps with IEEE802.11ac module over great coverage to ensure the robust mobility experience.

- Control-based Cisco Aironet 3600 series access point, a component of the Cisco Unified Wireless Network, enables the capability to support voice, location services, guest access, and advanced security and scales to up to 18000 access points with full Layer 3 mobility across central or remote locations. Modular architecture enables flexible add-on options, which include Wireless Security Module, IEEE802.11ac module or the Cisco Universal Small Cell 5310 Module.

Specifications

Devide Type Wireless Access point

Regulatory domain A regulatory domain

Supported wireless LAN controllers - Cisco 2500 Series Wireless Controllers

- Cisco Wireless Controller Module for ISR G2

- Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches

- Cisco 5500 Series Wireless Controllers

Software Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers:

- 7.2 or later for the Cisco Aironet 3600 Series Access Point

- 7.4 or later for support of the Wireless Security Module for the 3600 Series Access Point

- 7.5 or later for support of the 802.11ac Wave 1 Module for the 3600 Series Access Point

Data rates supported - 802.11a: up to 54 Mbps

- 802.11g: up to 54 Mbps

Antenna (integrated) - 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°

Interfaces - 10/100/1000BASE-T autosensing (RJ-45)

System memory - 256 MB DRAM

Module options - Cisco Aironet Wireless Security Module

- Cisco Aironet IEEE 802.1ac Wave 1 Module

Power consumption (purchase separately) - No external module installed, 4x4:3 on 2.4/5 GHz : 16.1 Watts

- No external module installed, 3x3:3 on 2.4/5 GHz : 15.4 Watts

IEEE standards - IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d

Security - 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA

- 802.1X

Extensible Authentication Protocol (EAP) types - EAP-Transport Layer Security (TLS)

- EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)

- Protected EAP (PEAP) v0 or EAP-MSCHAPv2

Integrated Antenna - 2.4 GHz, Gain 2 dBi, internal omni, horizontal beamwidth 360°

- 5 GHz, Gain 4 dBi, internal omni, horizontal beamwidth 360°

External Antenna (Sold Separately) - Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

- Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios

Indicators - Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H) - Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm)

Weight 1.13kg

Environmental Cisco Aironet 3600i

- Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)

- Nonoperating (storage) Altitude Test -25˚C, 15,000 ft.

- Operating temperature: 32 to 104°F (0 to 40°C)

- Operating humidity: 10 to 90% percent (noncondensing)

- Operating Altitude Test -40˚C, 9843 ft. Cisco Aironet 3600e

- Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)

- Nonoperating (storage) Altitude Test - 25˚C, 15,000 ft.

- Operating temperature: -4 to 131°F (-20 to 55°C)

- Operating humidity: 10 to 90 percent (noncondensing)

- Operating Altitude Test -40˚C, 9843 ft.

- Bảo hành: 12 tháng.
