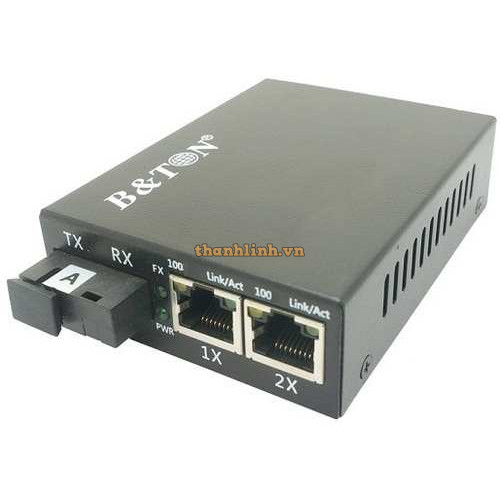

Chuyển đổi Quang-Điện Media Converter Unmanaged Fiber Switch BTON BT-914SM-20A

- 4 Ethernet Port 10/100Mbps, Single Mode, 20km, SC.

- Chuyển đổi quang điện Media Converter 10/100 Base-Tx đến 1000 Base-LX, Dual Fiber Single mode.

- Tích hợp 4 cổng Ethernet (RJ45) 10/100Mps.

- Khoảng cách truyền: 20km.

- Bước sóng quang hoạt động: 1310/1550nm.

- Ngõ giao tiếp quang: Connector SC.

- Ngõ giao tiếp mạng: RJ45.

- Tương thích các chuẩn: IEEE802.3u, 10/100 Base-TX, 100Base-FX.

- Các đèn LED chỉ thị nguồn, FX LINK/ ACT, 100, TP LINK/ ACT, FDX/ COL.

Features

- Flow control for full duplex and half duplex.

- Supports up to 10k byte JUMBO frame.

- Supports Fiber Port Trunking, Increasing Fiber Channel Bandwidth and Supply Fiber Channel Redundancy.

- Supports Ports Based VLANS and TAG Based VLANS.

- In conformity to safety code of FCC and CE MARK.

- Connector: Multi-UTP RJ-45 connector, one or two fiber connector.

- Operation mode: full duplex mode or half duplex mode.

- Power supply parameter: 5VDC, 1A/2A.

- Environmental temperature: 0-50°C.

- Relative humidity: 5%-90%.

-UTP cable: Cat5 UTP cable.

-Transfer fiber: multimode (50/125, 62.5/125 or 100/140um); single mode(8.3/125,8.7/125, 9/125 or 10/125um).

Specifications

Model BT-914SM-20A

Rate 10/100Mbps

Protocol Supported IEEE802.3

Fiber type Dual fiber

Optic mode Single Mode

Ethernet interface RJ-45

Optic interface SC/FC/ST

Optic wavelength 1310/1550nm

BER < 1/1000000000

Power 2.5W

Power supply 220VAC/0.5A, 48VDC/0.5A, 5VDC/1A, 2A

Working temperature 0~50ºC

- Sản xuất tại Trung Quốc.

- Bảo hành: 12 tháng.
