Cảm biến hình ảnh 1/2.8” SONY CMOS
Độ phân giải tối đa 2560x1944
Lens f2.8 ~ 12mm / F1.6 ~ F2.2
Viewing Angle Tele 40˚ ~ Wide 117˚ (Đường chéo)
Độ nhạy sáng tối thiểu 0.001 Lux (IR LED off), 0 Lux (IR LED on)
Tốc độ màn trập AUTO, 1/25s ~ 1/100000s
IR LED 20 units
Khoảng cách hồng ngoại 50 meters
Day / Night Có
WDR Mode Có (120dB)
RTC Có
Micro SD Card Slot Có (up to 256GB)
Chuẩn nén H265 / H.264
Độ phân giải video Main Stream 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P
Frame Rate 5MP @ 25FPS
Video Profile High profile / Main profile / Base profile
Multiple Video Streaming 2 streams
Bitrate Control 32Kbps - 8Mbps, VBR/CBR
Image Enhancement WDR / BLC / HLC / 2D DNR / 3D DNR / AWB / MWB / AGC
Day / Night Switch Auto / Color / (B/W) / Timing
Forced Anti-flicker Có
Defog Có
White Balance Auto / Manual
Image Orientation Rotate / Mirror
Privacy Mask Có
Text Overlay Có
OSD Title Location / font size / text configurable; text input (English & Chinese characters) and imageupload (BMP) supported
Encoding G.711-u / G.711-a
Audio Adjustment Có
Alarm in Có
Alarm out Có
Detection Mode Motion / Human / Vehicle Detection
Detection Schedule Có
Motion Detection Area 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18
Human Detection Alert Audio alert with customized mp3 audio file(s)
On-Board Storage Built-in memory card slot, supports microSD / SDHC / SDXC card up to 256GB
Overwrite Có
Maximum Recoding Time / per File ile 1, 2, 3, 5, 10, 20 & 30 minutes configurable
Recording Schedule Có
Cổng LAN RJ45 connector x 1 / 4KV lightning-proof
LAN Speed 100Mbps Based-T Ethernet
Supported Protocols HTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS / RTMP
ONVIF Compatible Onvif 17.06 compatible
Number of Online 6
Remote Access Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome
Web Interface Language English, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean
Nhiệt độ hoạt động -30℃ ~ 60℃
Độ ẩm hoạt động 10%-90%RH
POE IEEE 802.3af
Công suất nguồn (±10%) PoE / DC12V
Điện năng tiêu thụ (±10%) < 8 W
Khối lượng tịnh 1063.5
Casing IP66
Minimum Web Browsing Requirements - Intel core i3 or higher, or equivalent AMD - 2GB RAM - AGP graphics card, Direct Draw, 32MB RAM - Windows 10, Windows 8, Windows 7, DirectX 9.0 or later - Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome

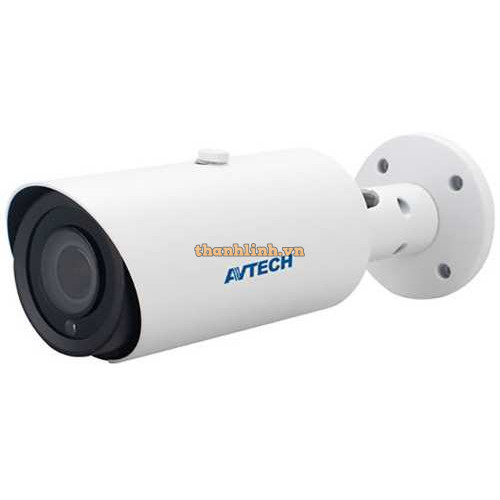

Camera IP thân Avtech DGM5546SVAT
- Thương hiệu: AVTECH
- Mã số sản phẩm: DGM5546SVAT
- Tình trạng kho: Đặt hàng qua Zalo hoặc Email
-
Xin liên hệ
