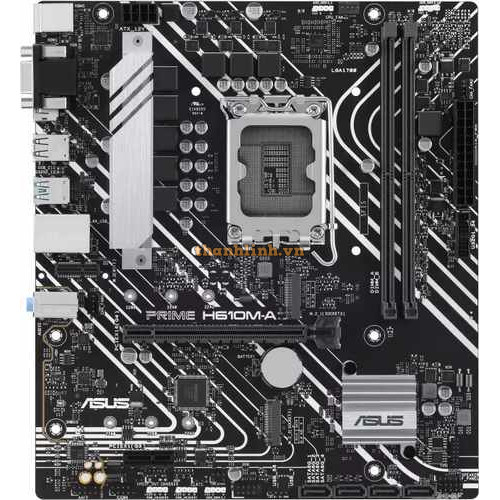

Model PRIME H610M-A-CSM

Loại CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Hỗ trợ CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset Intel® H610 Chipset

Số khe DIMM 2 x DIMM slots

Dung lượng tối đa Max. 96GB

Loại bộ nhớ DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory

Kiến trúc bộ nhớ Dual Channel Memory Architecture

Hỗ trợ XMP Supports Intel® Extreme Memory Profile (XMP)

Cổng kết nối đồ họa 1 x DisplayPort, 1 x VGA port, 1 x HDMITM port

USB sau Rear USB (Total 6 ports), 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)

USB trước Front USB (Total 5 ports), 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 1 USB 2.0 port, 1 x USB 2.0 header supports additional 2 USB 2.0 ports

⚙ THÔNG SỐ CƠ BẢN:

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors

Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet and USB 3.2 Gen 2 support

Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+

Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
