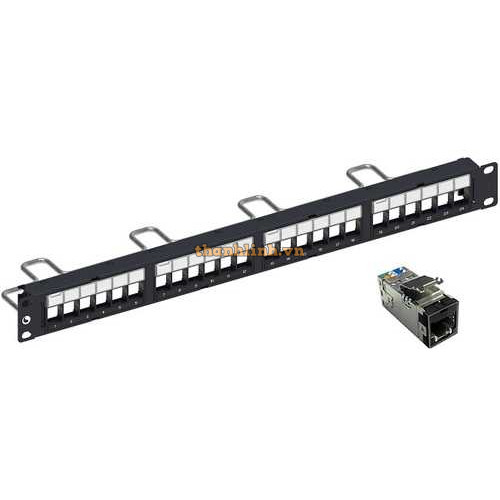

Patch panel 24 port COMMSCOPE CAT6A STP (760237046/ 2153449-2)

Part Number: 760237046/ 2153449-2

*) Patch panel 24 port CAT6A STP (760237046)

- Product Type: RJ45 patch panel

- ANSI/TIA Category: 6/6A

- Cable Type: Shielded

- Color: Black

- Modules: 0

- Panel Style: Straight

- Rack Type: EIA 19 in

- Rack Units: 1

- Total Ports: 24

- Material Type: High-impact, flame retardant, thermoplastic / Powder-coated steel

- Operating Temperature: -10°C to +60°C

- Storage Temperature: -40°C to +70°C

- Dimensions (HxWxD): 44.45 x 482.6 x 119.38 mm

*) Modular Jack COMMSCOPE CAT6A S/FTP (2153449-2)

- ANSI/TIA Category: 6A

- Cable Type: Shielded

- Color: Black

- Conductor Type: Solid/ Stranded

- Integrated Dust Cover Type: None

- Mounting: SL Series faceplates and panels

- Mounting Note: Color matches with SL-style Black Faceplates and Surface Mount Boxes

- Outlet Type: Standard

- Termination Punchdowns, minimum: 5 times

- Termination Tool: SL Termination tool

- Termination Type: IDC

- Transmission Standards: ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA

- Wiring: T568A/ T568B

- Contact Plating Thickness: 1.27 µm

- Compatible Conductor Gauge, solid: 26~22 AWG

- Compatible Conductor Gauge, stranded: 26~24 AWG

- Packaging quantity: 24
