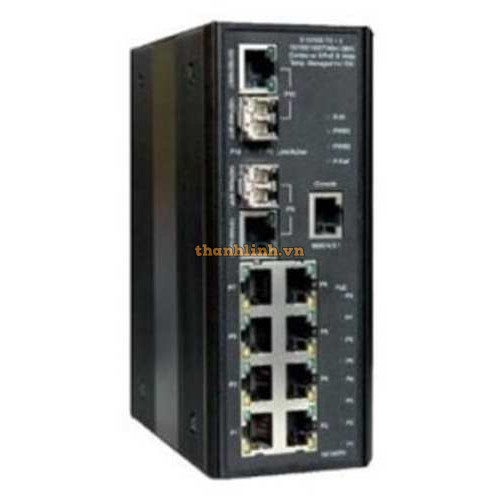

8 x 10/100 Mbps RJ45 Ports

2 x 10/100/1000 Mbps RJ45 Uplink Port

100/1000 Mbps SFP Combo Uplink Port, 1 x Console Port

- Transfer Rate: 14,881pps for Ethernet port

148,810pps for Fast Ethernet port

1,488,100pps for Gigabit Fiber Ethernet port

- Feature: PoE Port Management; 1 x Relay Alarm Output for port breakdown / power fail alarm (Read More In Specification)

- Security: Login Security; Loop Protection : prevents network attack, lookback cable detection (Read More In Specification)

- Switch Capacity: 5.6G (8K MAC Address);

- Power Input: DC 48~56V (Dual Power Input)

- PoE Budget: 240W@ 52V; 200W@ 48V

- Metal Case , L 105 mm x W 59.6 mm x H 152 mm , Weight 0.900 kg;

- Operating Temperature: -40 ~ 75°C (Fanless Design);

- Operating Humidity: 5% ~ 95% (non - condersing).

- Standards Environmental: FCC Class A, EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11, EN61000-6-2(EMS), EN61000-6-4(EMI); IEC60068-2-31 (Drop off), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

- Design Comply to CE
