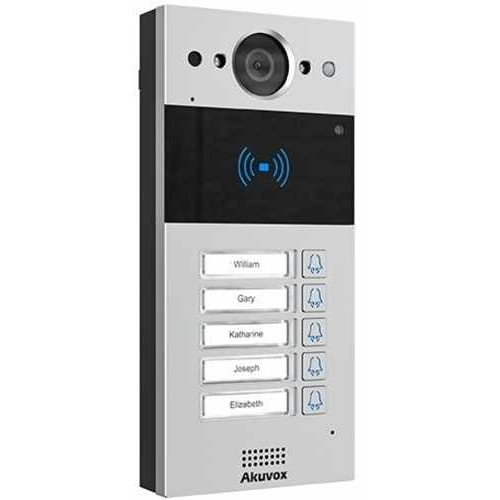

Camera chuông cửa IP AKUVOX R20B

- Five call buttons with name plate.

- Wide-angle camera: 110º (H), 58º (V).

- PoE (IEEE802.3af, Power-over-Ethernet).

- Two-way audio communication over IP networks with Echo Cancel feature.

- Complies with SIP standard for easy integration in every SIP capable PBXes.

- Complies with ONVIF standard for easy integration with any network surveillance system.

Specifications

Physical & Power

- Front panel: Aluminum alloy

- Camera: 2M pixels, automatic lighting

- Buttons: 5

- Light sensor: Support

- Infrared sensor: Support

- Wiegand port: Support

- RS485 port: Support

- RF card reader: 13.56MHz & 125kHz

- Relays out: 2

- Inputs: 2

- Microphone: -40dB

- Speaker: 4Ω / 2W

- Ethernet port: RJ45, 10/100Mbps adaptive

- 802.3af Power-over-Ethernet

- 12V DC connector (if not using PoE)

- Water-proof & Dust-proof: IP65

- Installation: Flush-mounted or Wall-mounted

- Flush-mounted DIM: 226 x 108 x 52 mm

- Wall-mounted DIM: 185 x 85 x 24 mm

- Working Humidity: 10~90%

- Working Temperature: -30°C ~ +65°C

- Storage Temperature: -40°C ~ +70°C

Audio

- SIP v1 (RFC2543), SIP v2 (RFC3261)

- Narrowband audio codec: G.711a, G.711μ, G.729
