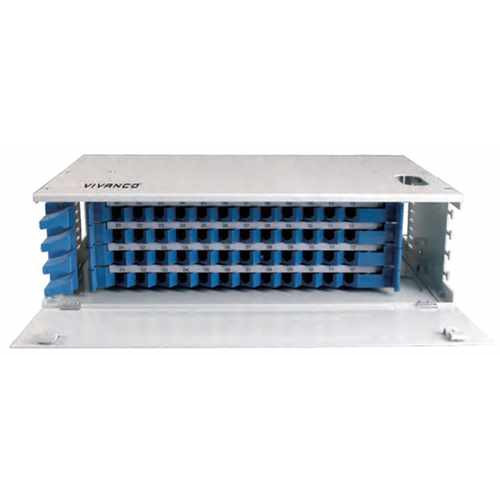

144 Port ODF Optical Distribution Frame VIVANCO VCFPDTNTCN1447
- 144 Port ODF (for 144 Core SC/FC, 288 Core Duplex LC, Adaptor Unloaded, 7.5U).
- 19 inch standard installation.
- Metal structure, electrostatic powder-coated surface, plastic components, light structure.
- Pull-out design with fiber splicing accessories.
- SC, LC duplex, FC, ST adaptors optional.
- Suitable for bundle and ribbon fiber cables, with sufficient storage space for both optical fiber cables and pigtails.
- Compliance: ISO/IEC11801, ANSI/TIA/EIA 568-C.3.
Specifications
- Material: SPCC.
- Distribution Board Material: PVC.
- Maximum Bending Space (mm): ≥30.
- Max Fiber Count: 192.
- Adaptor: SC, FC, ST, duplex LC.
- Insertion Loss (dB): ≤0.3.
- Return Loss (dB): ≥45.
- Item Dimension (mm) 1U, 2U: 430 x 250 x 48mm.
- Item Dimension (mm) 3U, 4U: 485 x 300 x 130mm.
- Item Dimension (mm) 5U: 485 x 300 x 230mm.
- Hãng sản xuất VIVANCO của Germany.
- Sản xuất tại Trung Quốc.
144 Port ODF Optical Distribution Frame VIVANCO VCFPDTNTCN1447
- Thương hiệu: VIVANCO
- Mã số sản phẩm: VCFPDTNTCN1447
- Tình trạng kho: Xin liên hệ
-
Xin liên hệ
