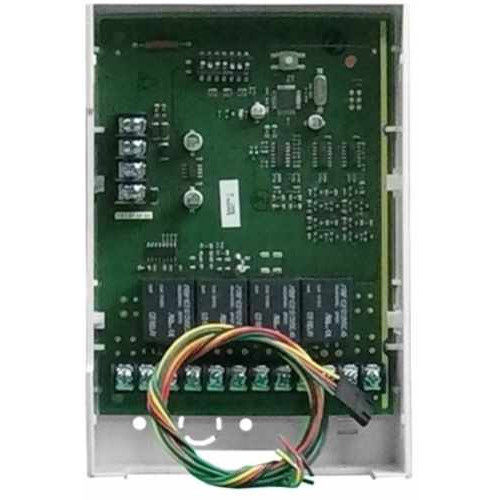

Relay Module HONEYWELL ADEMCO 4204
- The Relay Module HONEYWELL ADEMCO 4204 provides from one to four dry, form-C ( SPDT) relay outputs to compatible control/communicators. It connects to the control's keypad wiring terminals.
- ADEMCO 4204 can be mounted inside the control's cabinet or mounted remotely depending on the application.
- Input Voltage: 12VDC nominal (10-14 VDC, from control's remote keypad connection points)
- Input Current: 15mA standby + 40mA per active relay.
- Contact Rating: 2A max. at 28VDC/AC (resistive loads).
- Dimension (W x H x D): 163 x 108 x 32 mm.
- Bảo hành: 12 tháng.
Relay Module HONEYWELL ADEMCO 4204
- Thương hiệu: HONEYWELL
- Mã số sản phẩm: ADEMCO 4204
- Tình trạng kho: Xin liên hệ
-
Xin liên hệ
